ISOSTATIC LAMINATOR

OVERVIEW

  • High-pressure isostatic lamination
  • Stable pressure to reduce de-lamination
  • Multiple stacks in a small footprint

SOFTWARE

  • OPC-UA Data Communication
  • Unlimited storage for pressure programs

PTC CUTTING-EDGE

  • Worldwide technical support
  • High quality, cost-efficient laminating system
  • Easy to operate, low maintenance

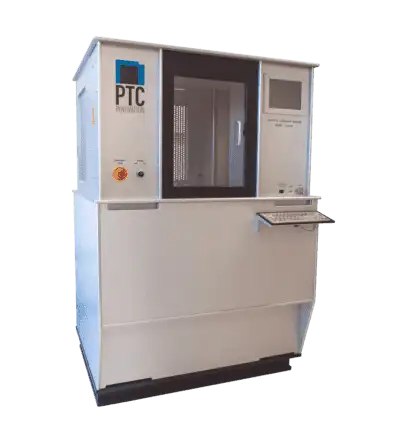

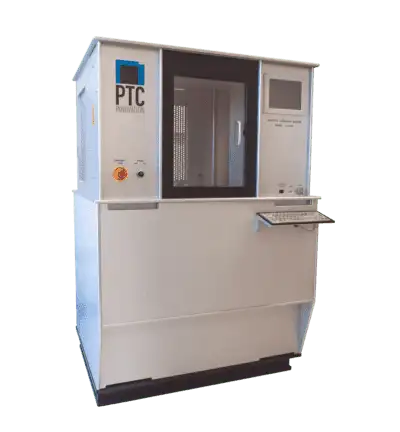

PTC’s patented LT Series Isostatic Laminators are designed specifically to laminate all types of multilayer ceramics prior to firing. LT Series Isostatic laminators use water as a medium to uniformly distribute the force of lamination. This process minimizes de-lamination and gives a more uniform shrinkage which improves yield on complex parts. Parts to be laminated are vacuum-sealed in flexible lamination bags, employing a vacuum bag sealer.

Operators can perform most functions through the embedded touch screen. The PTC specified operating interface provides a recipe-­‐driven menu (recipe = a specific combination of pressure, temperature, soak time and dwell time) for ease of programming. This allows the operator to program the required profile needed to laminate at an optimum process setting.

– For more information, please download the specification sheet for the PTC Laminator here.

– You can also download information about equipment financing here.
