CERAMIC PUNCH

OVERVIEW

High-speed punch – Up to 1440 holes/min
High-accuracy – Up to ± 0.005 mm
Quick punch/die replacement – Tool change in minutes

SOFTWARE

PTC Specific state of the art user interface
Unlimited storage for punch recipes

PTC CUTTING-EDGE

Versatile – a wide range of hole sizes
Hole verification – automatic laser optic inspection of tape

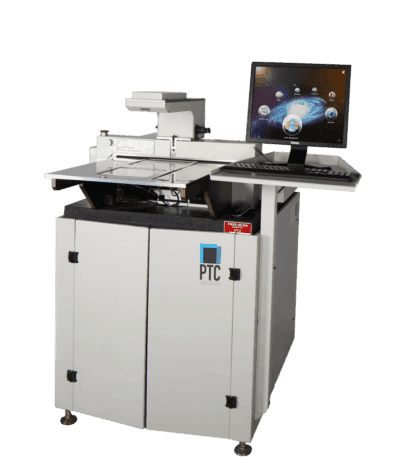

PTC’s automatic punch system is designed and manufactured to meet the demanding tolerance required in the microelectronic ceramic industry. With its compact design and process flexibility, the PT08001 is equally suited for laboratory or production applications. The versatile multi-punch assembly head accommodates via, registration and cavity holes.

The punch requires no alignment of the punches to the dies by the operator. It can replace individual punches in less than a minute. The menu-driven proprietary program offers a user-friendly interface to all system functions and diagnostic tools with critical data displayed in real-time. Punch programs easily load from .dxf and NC drill files.
