FULLY AUTOMATIC INJECTION VIA FILLEr

OVERVIEW

High-volume production with automated loading and unloading
Supports green sheets and rigid substrates up to 8×8” (203x203mm)
Completes fills for vias as small as 0.003” (75 μm) with no trapped air
Twice as fast as screen printing, with precise registration and easy setup

SOFTWARE

Double cross microscope vision alignment with CCD cameras and proprietary software
PC and PLC-controlled system with graphical HMI for intuitive operation and real-time data logging

PTC CUTTING-EDGE

Pneumatic pressure injection with tool-less mask attachment and quick-change mask frame
Includes both input and output magazine handling with optional tray and paper separators
Worldwide technical support

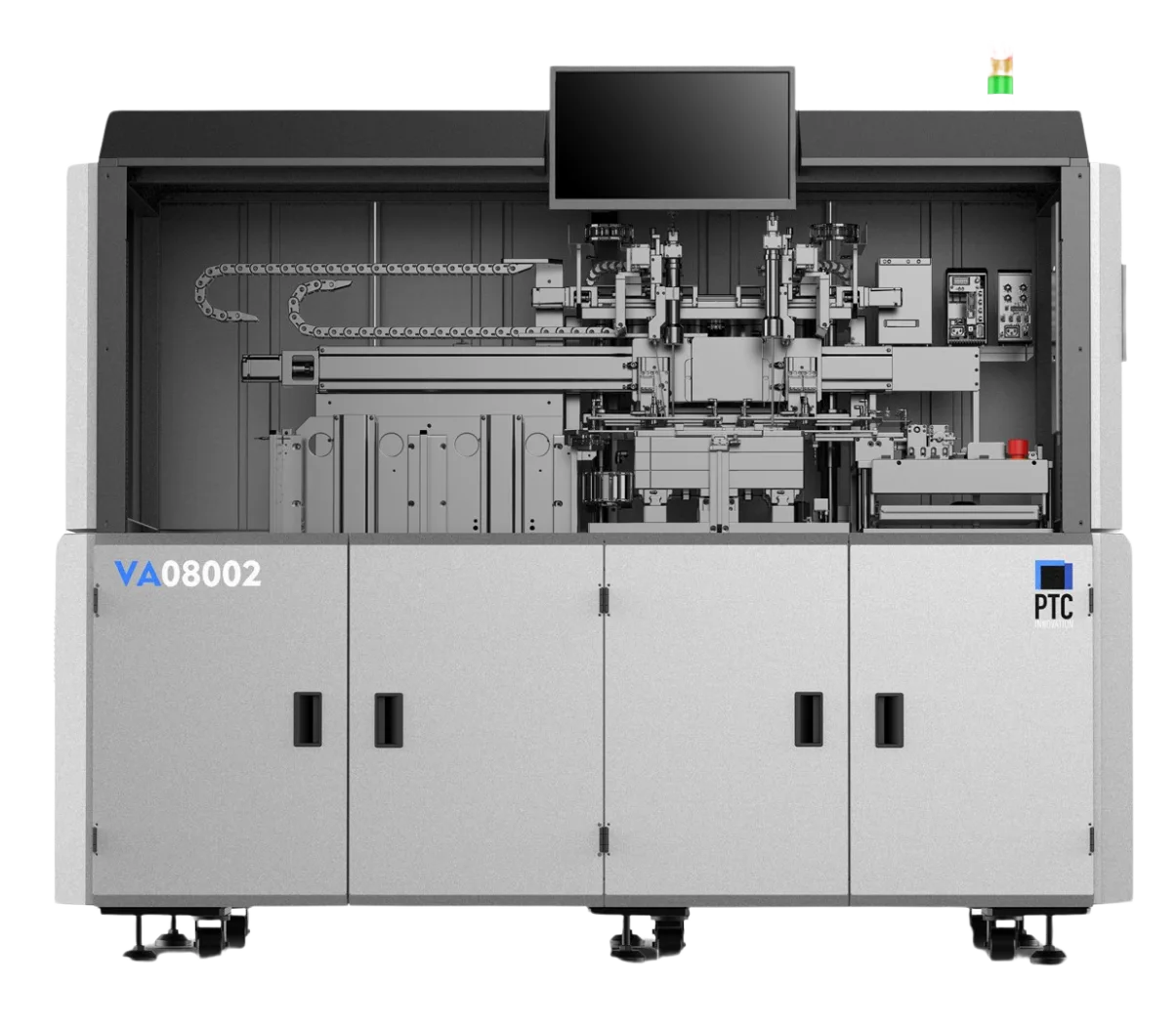

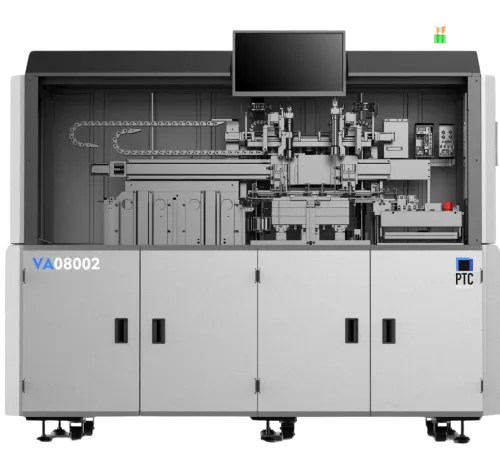

PTC’s GEN-II Fully Automated VA Series Injection Via Fill System is engineered for high-efficiency, hands-free production, requiring minimal operator intervention. A magazine feeds products onto the via fill stage, where CCD cameras and precision alignment software align fiducials to ensure exact registration before filling.

The via fill paste is injected through a sealed chamber and stencil mask using compressed air, displacing any trapped air for uniform filling. The sealed paste reservoir maintains consistency, supporting stable quality over extended production runs. Operators control injection parameters such as time and pressure via an intuitive HMI, with each cycle completed in 50-55 seconds for optimal speed and quality.
