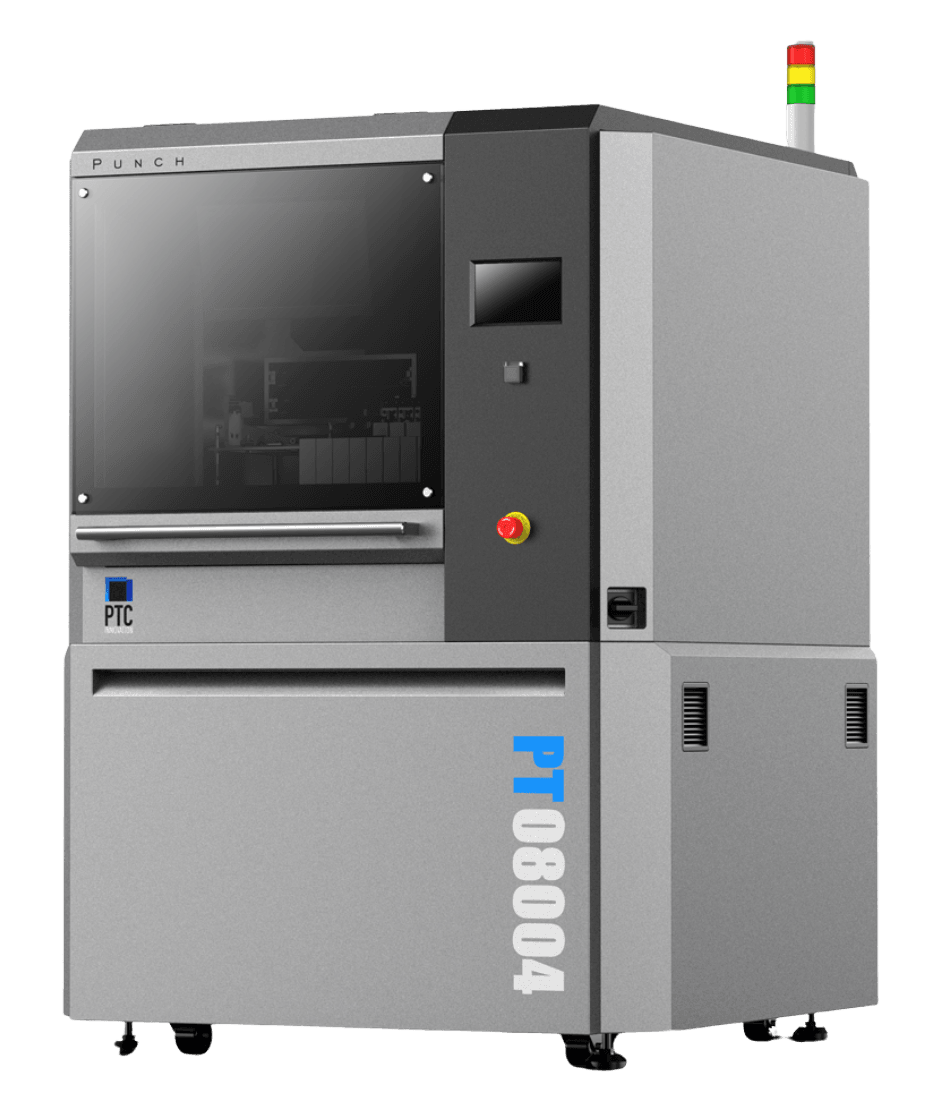

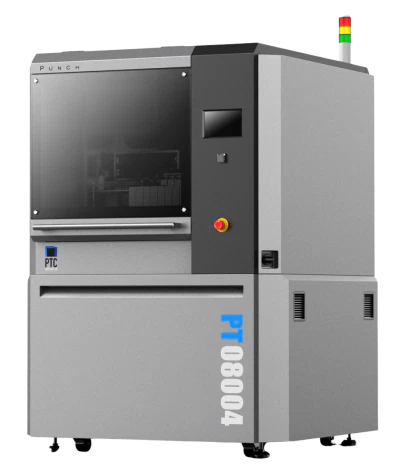

Automatic Green Tape Punch (PT08004)
OVERVIEW
- High-speed punching – Up to 1,200 via holes per minute
- Exceptional accuracy – Positioning accuracy of ±5 µm
Versatile operation – Supports up to 8 punch heads for varied hole sizes - Quick tool replacement – Pin & die sets can be changed in minutes
- Automatic hole verification – Optical inspection ensures precision
SOFTWARE
- PTC’s advanced user interface – Intuitive, menu-driven controls for easy operation
- Seamless data integration – Punch programs load from .dxf, NC drill, and CAD files
- Real-time diagnostics – Immediate access to system performance data
PTC CUTTING-EDGE
- Versatile – a wide range of hole sizes
- Hole verification – automatic laser optic inspection of tape
- Large punch area – Accommodates up to 8×8” (203x203mm) workpieces
The PTC PT08004 Automatic Green Tape Punch is designed to meet the precision demands of LTCC and HTCC manufacturing. Engineered for both laboratory and mid-volume production, it delivers high-speed punching of up to 1,200 via holes per minute with ±5 µm positioning accuracy.
Its multi-head punching system allows for a variety of hole sizes and configurations in a single program, while optical inspection technology ensures accurate and consistent results. The vacuum frame holding system secures workpieces during processing, and the quick pin and die replacement minimizes downtime.
With an 8×8” (203x203mm) punch area, intuitive software, and compatibility with .dxf, NC drill, and CAD files, the PT08004 offers efficient, precise, and reliable performance for ceramic tape processing in both research and industrial applications, ensuring high-quality results with every cycle.
PLEASE NOTE: Technical content and specifications may change without prior notice. For the most up-to-date information, kindly contact PTC Sales.
